Data Fields Location
Previous  Top  Next


The "Data Fields Location" area on the settings interface allows you to specify how the data will be inserted into the worksheet:

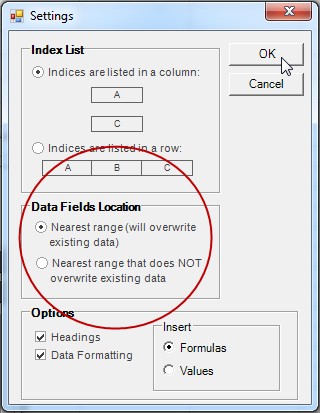

fields1


There are two choices for the location of the returned data fields:

Nearest Range (overwrite existing data)

CDXZipStreamTM will place the returned data immediately to the right of the index column, or immediately below. In this case, any data that already exists in this area will be overwritten, as shown below.

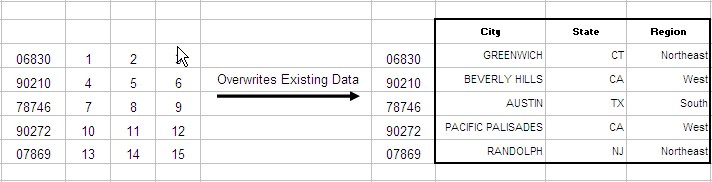

fields2




Nearest Range that does NOT contain data

If this option is chosen, CDXZipStream
TM will place the data as close as possible to the index list, without overwriting any existing data. Data sets will continue to be added in the nearest blank area:

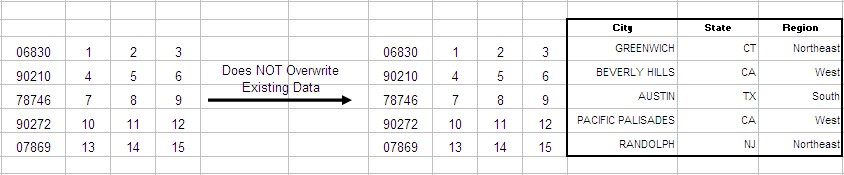

fields3
