Welcome to the CDXZipStream June 2016 Newsletter



This month we cover the options for getting Bing Maps keys through the Microsoft website and authorized Microsoft resellers.  We also offer some tips and tricks for using CDXZipStream Bing-related functions, and review the ability of the CDXRadius function to return up to a million postal codes within a specified radius area.

Getting a Bing Maps License Key



If you're new to CDXZipStream or have just upgraded to the latest version, you may want to use Bing-related functions that can do driving and route calculations, geocode and reverse geocode, look up postal codes and verify address information.  To use Bing Maps as the source of mapping data for these functions, the first step is to get a Bing Maps license key.  Free basic keys for evaluation purposes can be created from the Microsoft website, or you can purchase an enterprise version from Microsoft resellers such as Onterra Systems.



To get  a free basic key:



1. Go to the Bing Maps Dev Center and sign in with your Microsoft Account.  If you don't have an account, you have the opportunity to create one from the sign in page; there is no cost or obligation associated with having a Microsoft account.



2.  After signing in, you will be forwarded to a page with a "My Account" menu.  Select "My Keys" and on the next page click on the link for creating a new key.



3.  Next you'll see a box, shown below, with several fields to fill in:



Bing Maps Portal



4.  Click on "Create" and you will see your new Bing Maps key and related details listed.  To the right of the key select "Copy key".



5.   Now you can open Excel and from the "Settings" icon on the CDXZipStream commandbar, click on "Bing Maps Settings", then "Set Bing Maps Key", and use the keyboard shortcut CTRL-V to paste the new key into CDXZipStream.



To get an enterprise key:



Contact an authorized Microsoft reseller for an enterprise Bing Maps key.  Reseller Onterra Systems provides enterprise keys for $300 per year that cover up to 5 users and provide 100k data requests per day.  We have found that this license works well for most CDXZipStream applications.  You can contact Onterra using their on-line order form here.  If you work for a larger organization, please check with your IT department first to see if you already have access to a key as part of a Microsoft enterprise agreement.  Microsoft also provides a good review of Bing Maps licensing options on its website.



Tips and Tricks for Bing Maps Functions



Here are some helpful options when using the CDXZipStream functions CDXLocateBing and CDXRouteBing:



1.  Use partial address data: You don't have to input complete address data to get results - Bing can geocode and calculate driving routes using partial addresses, such as those with missing street numbers, or even just postal codes. However, it is a good idea to include country information whenever possible, but especially when working with partial addresses; it is not unusual for duplicate postal codes to occur in different countries.



2.  Try it again: Since Bing Maps is a web service, there may be times of heavy usage when data requests are unsuccessful.  Unfortunately, error messages from Bing don't necessarily differentiate between cases where an address is legitimately not found, versus an empty result due high demand.  If you're getting a lot of unexpected errors when using Bing-related functions, try running the calculations a second time to see if more results are returned.



4.  Use our Bing-compatible Excel templates:  We offer a wide variety of Excel templates (most of them free) that use either Bing Maps or Microsoft MapPoint as the source of mapping data.  They cover the most common CDXZipStream operations, including geocoding, reverse geocoding, driving distance and time calculations, and radius analysis.  Besides being simple to use, they offer the advantage of tracking the number of calculations completed; you can also cancel the calculations at any time by pressing the keyboard ESC key without losing the data already returned to the worksheet.  Please visit our website here for a listing of available templates.



5.  Enable autocopy and set to text options: When using the CDXRouteBing  or CDXLocateBing functions with long lists of locations, we highly recommend enabling the Autocopy and Set to text options, which will return data until the first empty row, and also return the data as text.   A large number of CDXZipStream formulas in a worksheet can significantly slow down Excel, especially during sorting or recalculation, and using text in lieu of formulas avoids this problem..



6.  Use Bing Maps from your browser:  BingMaps.com has a couple of new features you may find helpful when working with CDXZipStream.  Now there's a copy function for latitude and longitude associated with a point on a map.  Just right-click on the location of interest, and from the drop-down menu select "Copy" under the provided latitude and longitude data.  You can then easily paste (CTRL-V)  the data to your worksheet.  Try this option if CDXZipStream functions can't find an address in your list; both CDXRouteBing and CDXLocateBing can use latitude and longitude as input. A second feature now available with Bing Maps is a birds-eye view of traffic levels and construction areas.   So if you are getting surprising or inconsistent routing results from CDXZipStream, type the area (e.g. "Pittsburgh, PA") into Bing Maps and click on the "Traffic" icon.  Roads are color-coded according to traffic, and construction areas are highlighted in yellow or red.  Areas of construction or heavy traffic (if you are using the "Quickest with traffic" route calculation) may be affecting the results.



A Million Reasons to Use CDXRadius



When 64-bit CDXZipStream was introduced last year, it included a number of new features, including the ability to return up to a million postal codes when using CDXRadius.



The CDXRadius function returns a list of postal codes within a specified distance of a target postal code.  Data can be returned as a single text string, a Microsoft Excel array, or a text list.  It works with the CDXZipStream U.S. and Canadian postal code databases, either individually or in combination.  Since Canada has over 800K postal codes, the ability to return up to 1 MM codes in CDXRadius provides coverage of much larger radius areas there.

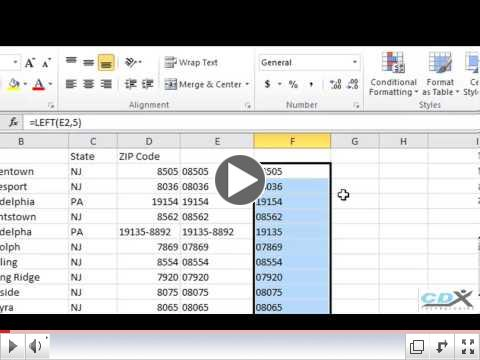

CDXRadius can be used in combination with the Excel LOOKUP function to find which customers, for instance, are within the radius distance of a store location, as shown in this tutorial:



Find ZIP Codes in a Radius

Find ZIP Codes in a Radius



Although the video uses U.S. locations in the example, Canadian locations can also be used if you have purchased the Canadian database option.  We also offer a free radius analysis template that automates this process; it can be downloaded from our website here.



Please note that to obtain postal code lists for up to a million results, you must also use Excel version 2007 and higher since earlier versions do not contain enough rows for the larger postal code arrays.



Latest Data Updates



Canadian and U.S. data feeds of CDXZipStream were updated as of June 24.  There were 85 changes made to the U.S. database this month.  If you would like to update your database to reflect these changes, select the "Account" option on the CDXZipStream commandbar and click on "Check for Available Database Updates".  You can then update each database as required.



CDXZipStream updates are a part of the one-year software maintenance subscription included with your purchase.  If you would like to extend your subscription, please sign in to the CDX Technologies website and from the account area for CDXZipStream, select "Buy Data Update".



As always we hope you find the information here helpful for you and your organization.  You can contact us with your feedback and suggestions by replying to this email.



The Team at CDX Technologies

June 2016
